Layer-Stranded ADSS Fiber Optic Cable

Brand Name : Ebo /OEM

Model Number : ADSS-32B1

Certification : ISO9001,ISO45001,ISO14001

Place of Origin : Shandong ,China

MOQ : 2000M

Price : EXW ≥2000m $0.35/M ≥5000m $0.33/M

Payment Terms : T/T

Supply Ability : 50000KMS/day

Packaging Details : 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.

Minimum Order Quantity : 2km

Packaging Details : wooden drum

Delivery Time : 3-7 work days

Payment Terms : L/C, T/T, Western Union

Contact Now

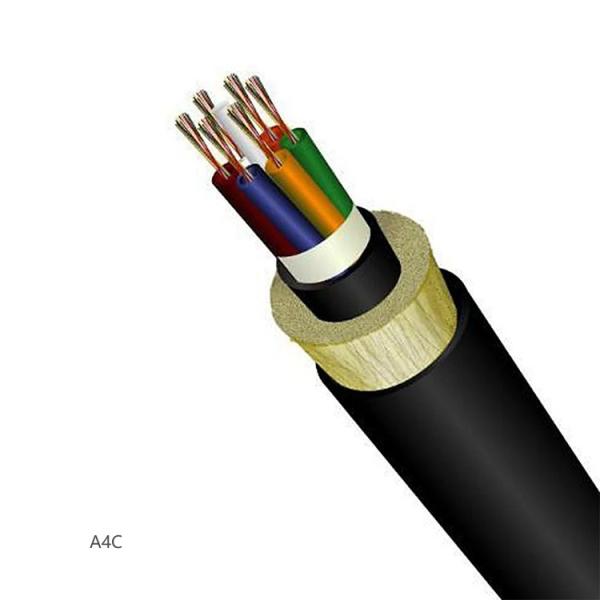

The optical fiber and water-blocking ointment in the layer-stranded ADSS optical cable are added to the loose tube of the fiber at the same time, and then different loose tubes are wound on the central strength member (usually FRP). Aramid yarn, finally extruded PE or AT sheath. The ADSS fiber optic cable loose tube of this structure and the filling ointment of the central strength member are fully twisted together to ensure its waterproof performance, and there are various anti-lateral pressure measures according to different requirements.

ADSS fiber optic cable features:

  1. ADSS fiber optic cable can be erected without power;
  2. Light weight, small cable diameter, small load on the tower;
  3. Large span, up to 1200 meters;
  4. Adopt polyethylene sheath, which has good resistance to electric corrosion;
  5. Non-metal structure, lightning protection;
  6. Imported aramid fiber, good tensile performance and temperature performance, suitable for severe weather in the north;
  7. Long life, the service life can reach 30 years.

Multiple laying methods:

Suitable for various occasions such as overhead, direct burial, pipeline, underwater, etc., the excess length is better controlled, and the number of cores is large.

Mechanical Performance:

ItemUnitSpecification
Fiber count 4~810~1814~2438~4838~4850~6062~7274~8486~9698~108110~120122~132124~144
Cable weightkg/km80808085858895100105110110115120
Spanm100100100100100100100100100100100100100
EDSKN1.5
MATKN4
RTSKN10
Min. Bending Radius(dynamic)mm20D
Min. Bending Radius(static)mm10D
Installing Tensile StrengthN1350
Operating Temperature℃-40~+70
Storage Temperature℃-40~+60
Installation Temperature℃15
Installing Wind Speedm/s0
Temperature at Max. Wind Speed℃5
Max. Wind Speedm/s25
Temperature at Max. Ice℃-5
Wind Speed at Max. Icem/s10
Ice Cover Thicknessmm5
Installing Sag%1.86

Cable Parameter:

ItemSpecification
Fiber Count4~810~1814~2438~4838~4850~6062~7274~8486~9698~108110~120122~132124~144
Loose tube count1243456789101112
Filler count5423210000000
Colored coating fiberOuter Diameter245±10μm
ColorBlue, orange, green, brown, gray, white, red, black, yellow, purple, pink, turquoise



Sub-cable unit

Outer Diameter2.0±0.1mm
MaterialPBT
ColorBlue, orange, green, brown, gray, white, red, black, yellow, purple, pink, turquoise
Filling compound(tube)Thixotropic jelly



Strength member

Center strength member materialFRP
Center strength member diameter2.2mm²
Aramid Yarn
Aramid Yarn section4.6mm²
Water blockingWater blocking tape/ Water swellable material



Outer Sheath

Thickness2.0mm
Diameter9.5mm9.5mm9.5mm9.8mm9.8mm10mm10.5mm11.5mm12mm12.5mm13.5mm14mm14.5mm
MaterialPE/AT
ColorBlack
